| 型号? Model | CWFL-30000ET | CWFL-30000FT |
| 事情电压? Voltage | AC 3P 380V | AC 3P 380V |
| 事情频率? Frequency | 50Hz | 60Hz |
| 事情电流? Current | 10.6~64.3A | 15.8~67.4A |
| 整机额定功率? Max.?power?consumption | 33.6kW | 37.65kW |
| 电辅助功率 Heater?power | 1.8kW+7.5kW | |
| 温控精度? Precision | ±1.5℃ | |
| 节约器? Reducer | 毛细管 Capillary | |
| 水泵功率? Pump power | 3.5kW+3.5kW | 3kW+3kW |
| 水箱容量? Tank capacity | 250L | |

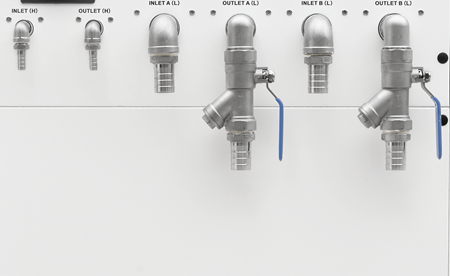

| 收支水口? Inlet and outlet | Rp1/2”+ Rp1-1/4”*2 | |
| 水泵最大扬程? Max.?pump?pressure | 85M | 81M |
| 额定流量? Rated flow | 10L/min+＞300L/min | |
| 净重? N.W. | 540Kg | |
| 毛重? G.W. | 710Kg | |
| 机械尺寸? Dimension | 207 X 96 X 146cm (L X W X H) | |
| 包装尺寸? Package dimension | 222X 114 X 169cm (L X W X H) | |
注：本站产品的手艺参数信息仅供参考，一切以现实交付为准。
